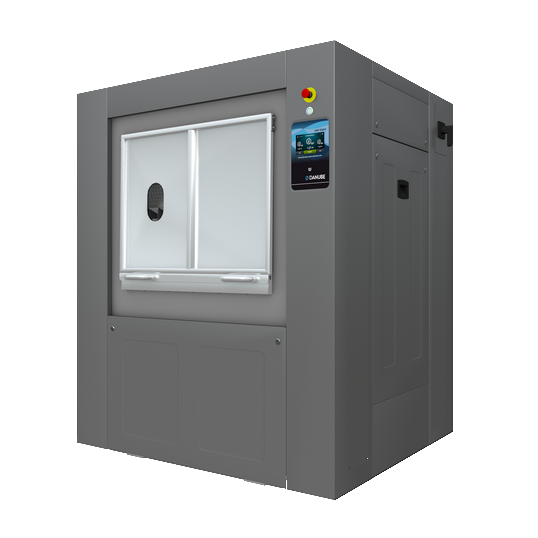

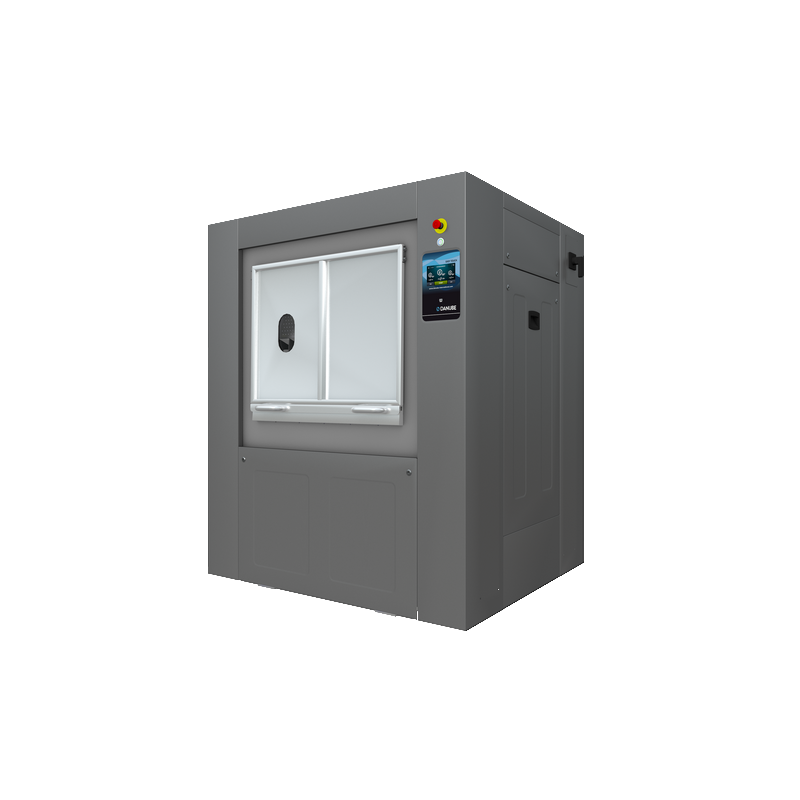

BL-AS100 ET2

PASS THROUGH BARRIER WASHER EXTRACTOR , SOFT MOUNTED

• Capacité : 90 Kg

• G factor 325, extraction speed 750 RPM

• Horizontally suspended drum by 2 axles, Pullman partition .

• No need of anchoring to the floor

• Grey skinplate outer casing , top nel en stainless steel.

• Vat and drum in AISI304 stainless steel.

• ET2 microprocessor with 7' touch screen , double display : 29 preset programs, 37 languages , possibility to import , export, create new programs.

• USB port

• 3 water inlets , double drain.

• 8 signals for  dosing pumps , ready to be connected to dosing pumps (no detergent box)

• Central drain

• Automatic positioning of drum with electric brake.

• Needs compressed for door opening  (air pressure 4-7 bar , Ø 8mm , air nsumption 10Nl/min).

OPTIONS ON THESE MODELS :

• Detergent box 4 compartments kit (on order or possibility to add later on site)
• UPS option in case of power failure (avoids motor brake blocking)

	AS 100
Capacité Capacities (1:9 –1:10)	100 - 90 kg
Volume tambour Drum volume	900 l
Essorage TMN Spin speed RPM	750
Facteur G G Force	325
Dimensions mm	1677x1344x1960
Poids net Net weight	1900 kg
